1. General Description
This 1-bedroom Airbnb unit is designed as a sustainable, off-grid retreat with modern aesthetics, leveraging passive cooling, solar energy, and rainwater harvesting. The open-plan layout maximizes natural ventilation and daylight, reducing operational costs. The estimated construction budget is $50,000 USD.
2. Site Considerations
Lot Size: Minimum 2,000 sq. ft.
Building Footprint: 500 sq. ft. ground floor, 250 sq. ft. upper floor
Orientation: North-South to optimize passive cooling
Landscaping: Native drought-resistant plants, green roof
Access: Gravel driveway with a small parking area (200 sq. ft.)
3. Structural System
Foundation: Reinforced concrete slab-on-grade (6″ thick)
Walls:
Ground Floor: 6″ concrete block with insulation
Upper Floor: Lightweight timber frame with composite cladding

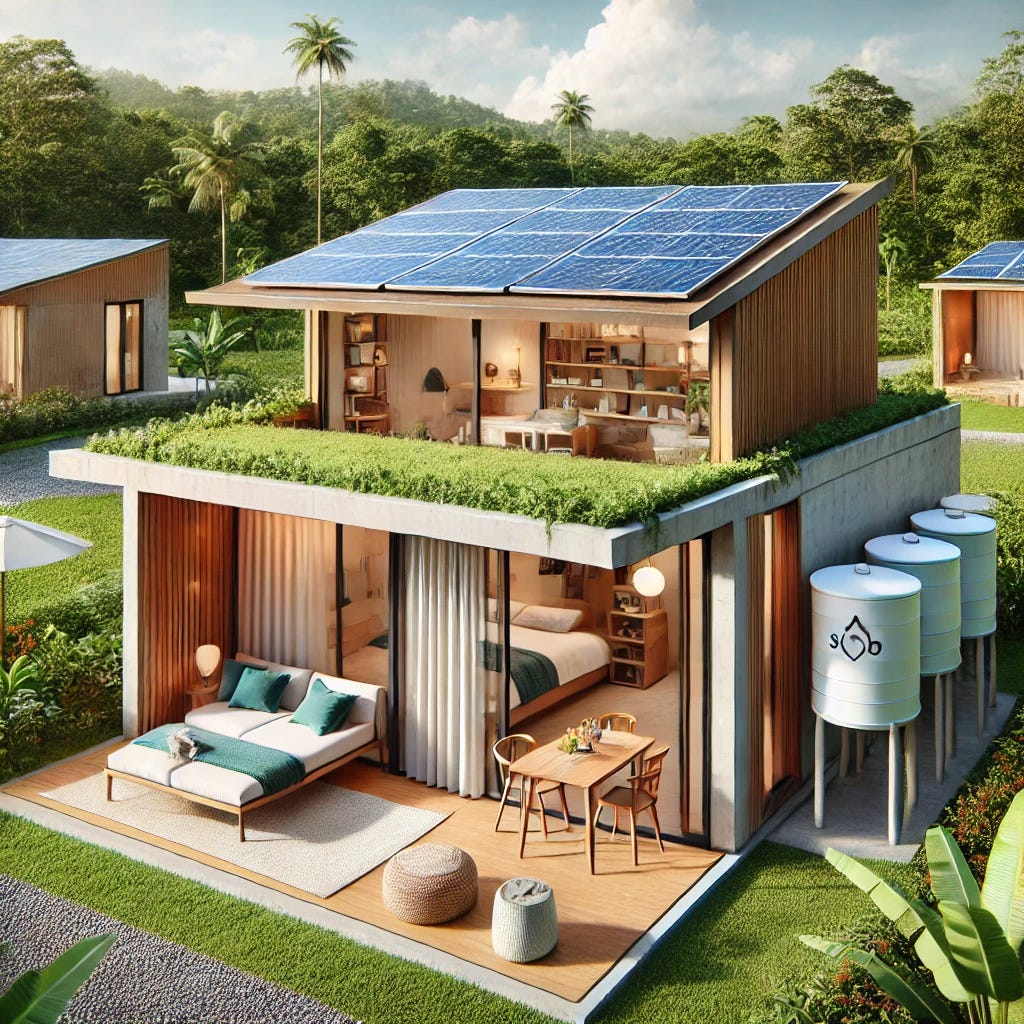

Roof:
Metal roofing with solar panels (5 kW system)
Green roof section for insulation
Doors & Windows:
Aluminum-framed sliding glass doors
Double-glazed low-E glass windows (argon-filled)

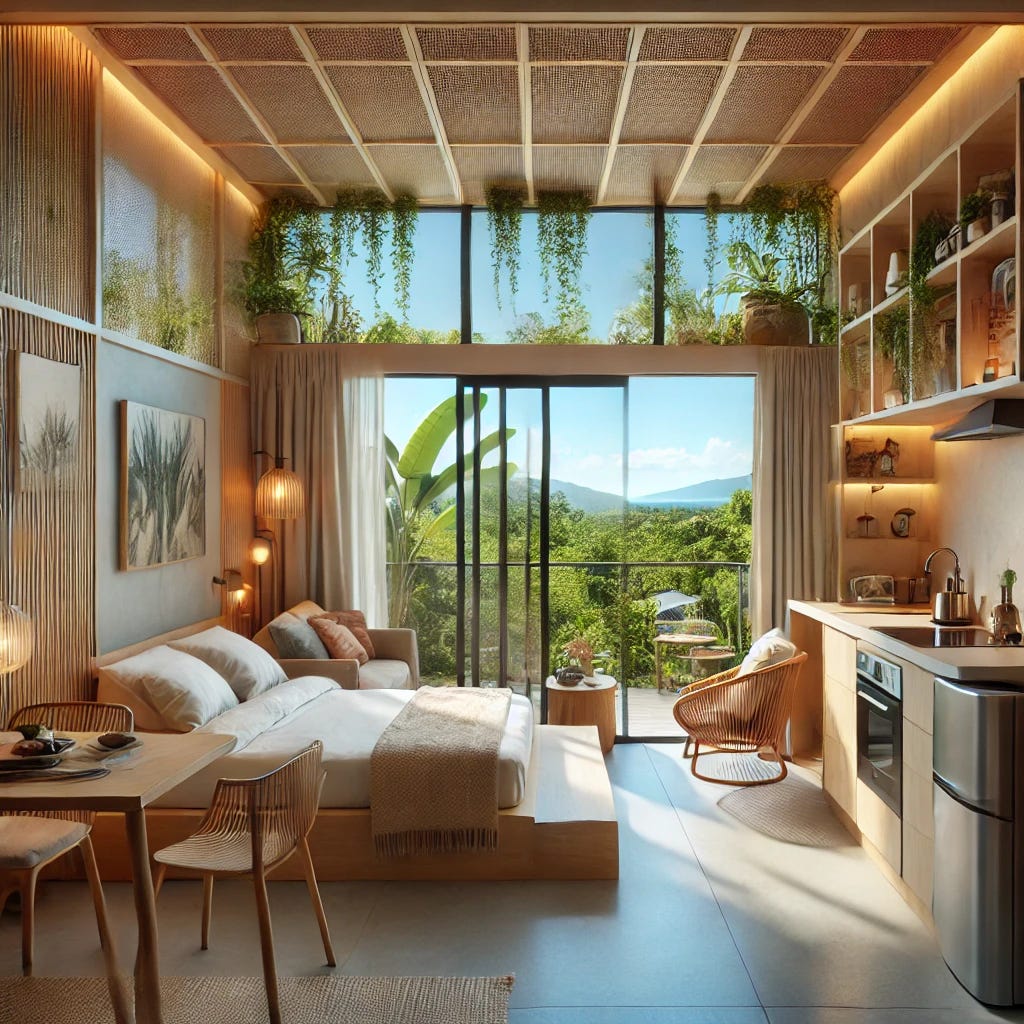

4. Interior Layout
Ground Floor:
Living & Dining Area: Open-plan with a 10 ft. ceiling height
Kitchen: Compact kitchenette with energy-efficient appliances
Bedroom: Queen-size bed, built-in wardrobe, and workspace
Bathroom: Full bath with rain shower, water-efficient fixtures
Outdoor Deck: 150 sq. ft. with pergola for shade
Upper Floor:
Loft Space: Multipurpose area (reading nook or small workspace)
Terrace: 200 sq. ft. with seating and garden
5. Electrical System
Power Source: 5 kW solar PV system with battery storage
Backup Generator: 2 kW propane generator (optional)
Lighting: LED fixtures throughout (warm white, 2700K)
Outlets & Wiring:
120V/240V dual voltage system
14 AWG wiring for standard circuits, 12 AWG for heavy-duty circuits
Appliances:
Energy Star-rated refrigerator, induction cooktop, and ceiling fans
6. Plumbing & Water Systems
Water Supply: 1,000-gallon rainwater harvesting system with filtration
Hot Water: 30-gallon solar water heater
Waste Management: Septic tank with leach field
Greywater Recycling: For irrigation
7. HVAC & Ventilation
Natural Ventilation: Large operable windows & ceiling fans
Mechanical Cooling: Optional split-unit inverter AC (9,000 BTU)
Insulation: Roof: R-30, Walls: R-19
8. Finishes & Materials
Flooring: Polished concrete (ground), bamboo (upper floor)
Walls: Lime-based plaster for natural cooling
Ceilings: Exposed timber beams
Cabinetry: FSC-certified plywood with natural finishes
Outdoor Decking: Weather-resistant hardwood (Teak/Ipe)
9. Smart Features & Automation
Smart Locks: Keyless entry system
Lighting Control: Wi-Fi-enabled switches
Security: CCTV cameras, motion sensors
10. Construction Timeline & Cost Breakdown
Foundation & Structural Work: $15,000
Roof & Solar System: $10,000
Interior Finishes & Fixtures: $15,000
Plumbing & Electrical: $8,000
Landscaping & External Works: $2,000
Conclusion
This Airbnb unit is designed for sustainability, comfort, and cost efficiency, making it an ideal investment for eco-conscious travelers in Jamaica. The combination of solar energy, rainwater harvesting, and smart home features ensures long-term savings and minimal environmental impact.
Disclaimer:
This architectural design concept is for illustrative purposes only. The layout, dimensions, and features depicted are subject to change based on site conditions, regulatory approvals, and construction feasibility. Costs, materials, and specifications may vary depending on local building codes, availability of resources, and environmental impact assessments. Professional consultation with architects, engineers, and local authorities is recommended before proceeding with any construction or development.
