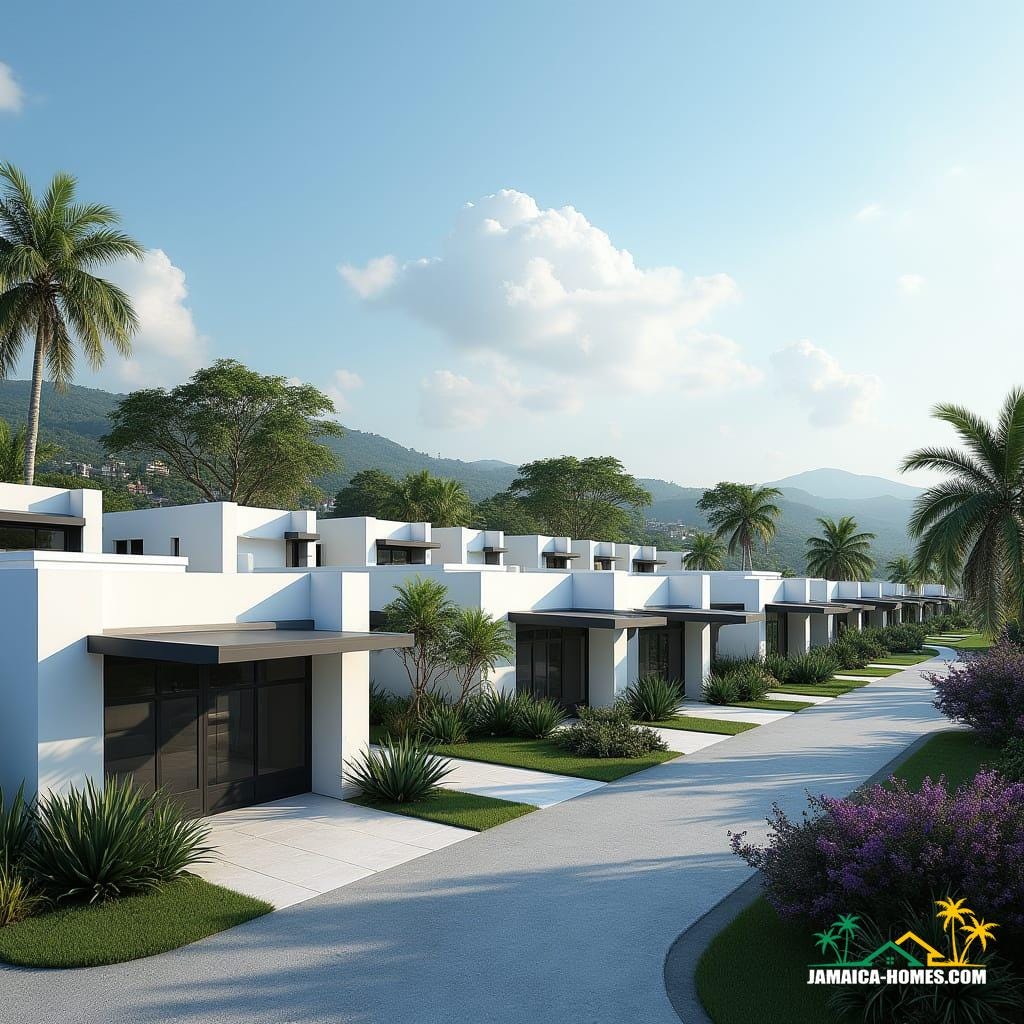

A serene modern housing scheme in St. Ann, Jamaica, showcasing ten identical, sleek, and minimalist single-story homes with a cubic design, white and dark grey exterior walls, large tinted windows, and clean geometric lines, set amidst lush tropical landscaping featuring agave, purple flowering shrubs, and palm trees. Each home’s flat roof has a slight overhang, providing shade, and the recessed doorways are framed by bold rectangular structures, leading to covered carports with pergola-style roofs and grey stone paver driveways. The development’s well-planned layout features tree-lined streets, sidewalks, and communal green spaces, with the rolling hills and Caribbean Sea visible in the background.
Architectural Specifications for Harmony Villas
1. General Overview
Project Type: Small gated housing scheme
Number of Units: 10
Location: St. Ann, Jamaica
Plot Size per Unit: 5,000 sq. ft. (approx.)
Built-Up Area per Unit: 1,500 – 1,800 sq. ft.
Design Style: Modern minimalist with tropical influences
Purpose: Residential (Owner-Occupied & Rental Investment)
2. Structural & Exterior Design
Foundation:
Reinforced concrete slab-on-grade with termite treatment
Designed to withstand Category 4 hurricane winds
Walls:
Concrete block walls (150mm thick), plastered and painted
Insulated with rigid foam for temperature control
Roof:
Flat reinforced concrete with UV-reflective waterproof membrane
Overhangs (2 ft) for shading and rain protection
Windows & Doors:
Windows: Aluminium-framed, tinted, impact-resistant glass
Main Entry Door: Solid hardwood with digital lock system
Interior Doors: Flush panel, moisture-resistant MDF
Sliding Glass Doors: Living room to patio transition
Driveway & Walkways:
Grey stone pavers with natural drainage gaps
Carport with steel pergola and waterproof shade cover
3. Interior Layout & Finishes
Bedrooms & Bathrooms
Bedrooms: 3 (Master suite + 2 additional bedrooms)
Bathrooms: 2 (Master ensuite + shared bathroom)
Flooring: Porcelain tiles throughout (24” x 24”)
Wardrobes: Built-in closets with sliding doors
Lighting: LED recessed ceiling lights
Kitchen & Living Areas
Kitchen:
Custom cabinetry with quartz countertops
Island with waterfall edge and seating for 3
Stainless steel appliances (stove, fridge, range hood)
Undermount stainless steel sink with pull-down faucet
Living & Dining:
Open-plan layout
12 ft ceilings with feature lighting
Sliding glass doors to covered patio
Bathrooms
Floating vanity with quartz top
Walk-in shower with frameless glass enclosure
Dual flush toilets for water conservation
4. Mechanical, Electrical & Plumbing (MEP)
Electrical System:
220V wiring, GFCI outlets in wet areas
Solar-powered water heater
Backup generator-ready connection
Plumbing System:
CPVC pipes for hot & cold water
Septic tank and soakaway system
Rainwater collection for irrigation
HVAC:
Energy-efficient inverter AC units in all bedrooms & living areas
Cross-ventilation with strategically placed windows
5. Sustainability & Smart Features
Solar Panels: Optional rooftop system for energy independence
Smart Home Integration: Voice-controlled lighting & security
Water Conservation: Low-flow faucets & dual-flush toilets
Landscaping:
Native drought-resistant plants
Irrigation system with rain sensor
6. Community & Security
Perimeter fencing with controlled access
24/7 CCTV surveillance & security patrol
Communal green spaces & jogging trails
Children’s play area & recreation zone
7. Construction Timeline & Cost Estimate
Design & Approvals: 3-6 months
Construction Timeline: 12-18 months
Estimated Cost per Unit: USD $500,000 – $750,000 (subject to materials & labor costs in Jamaica)
Disclaimer
The architectural specifications and images provided for Harmony Villas – St. Ann, Jamaica are for conceptual and informational purposes only. They do not constitute final construction drawings, engineering calculations, or regulatory approvals. All dimensions, materials, and features are subject to change based on local building codes, site conditions, and client preferences.
The images are artist impressions and may not represent the final built product. Variations in design, color, finishes, and landscaping may occur due to material availability, design refinements, or developer modifications.
Prospective buyers, investors, and builders are advised to consult with qualified architects, engineers, and local authorities to ensure compliance with Jamaican building regulations, zoning laws, and environmental requirementsbefore proceeding with construction.
No liability is assumed for any discrepancies, omissions, or changes in the project specifications.
